Hyperparameter prior

When data is deficient, quantiles are likely to overfit. This can be mitigated by setting prior distribution to hyperparameters, such as kernel lengthscales and noise level.

import os
import torch
import matplotlib.pyplot as plt

torch.manual_seed(42)
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")

n_epochs = int(os.getenv("GPYTORCHQR_N_EPOCHS", 5000))

Input data

def mean(x):
    # x: (N, 1)
    return torch.cos(x.squeeze(-1) * 2 * 3.14)


def std(x):
    # x: (N, 1)
    return x.squeeze(-1) + 0.1


x_range = torch.linspace(0, 1, 10, device=device).reshape(-1, 1)
x = x_range.repeat(1, 1)
y = mean(x) + torch.randn(len(x), device=device).mul(std(x))
q = torch.tensor([0.1, 0.25, 0.5, 0.75, 0.9], device=device)
standard_normal = torch.distributions.Normal(
    torch.zeros((), device=device), torch.ones((), device=device)
)
icdf = standard_normal.icdf(q)
true_quantiles = mean(x_range).unsqueeze(1) + std(x_range).unsqueeze(1) * icdf

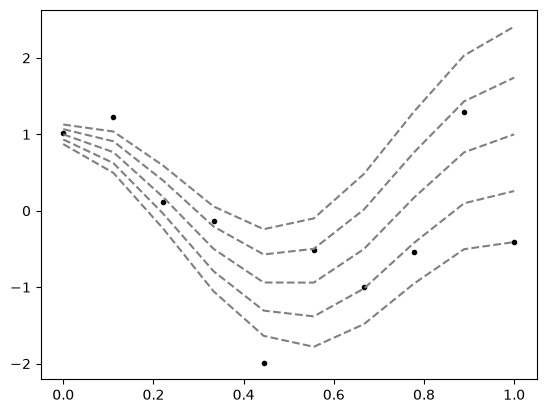

x_pred = torch.linspace(0, 1.5, 100, device=device).reshape(-1, 1)

plt.scatter(x.cpu(), y.cpu(), c="k", marker=".")
plt.plot(x_range.cpu(), true_quantiles.cpu(), "--", c="gray")
plt.show()

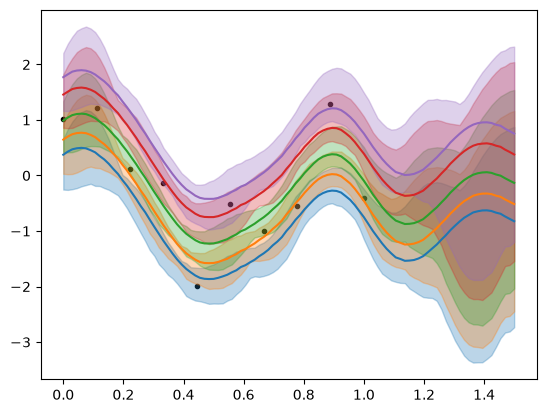

Model without prior

from gpytorch.means import ConstantMean
from gpytorch.kernels import ScaleKernel, RBFKernel
from gpytorch.variational import (
    CholeskyVariationalDistribution,
    VariationalStrategy,
    IndependentMultitaskVariationalStrategy,
)
from gpytorch_qr.models import CenterGapQuantileGP
from gpytorch_qr.likelihoods import CenterGapQuantilesLikelihood


class QuantileGPModel(CenterGapQuantileGP):
    def __init__(
        self,
        inducing_points,
        num_quantiles,
        num_lower_quantiles,
    ):
        N, D = inducing_points.size()
        variational_distribution = CholeskyVariationalDistribution(
            N,
            batch_shape=torch.Size([num_quantiles]),
        )
        variational_strategy = IndependentMultitaskVariationalStrategy(
            VariationalStrategy(
                self,
                inducing_points,
                variational_distribution,
                learn_inducing_locations=True,
            ),
            num_tasks=num_quantiles,
        )

        mean = ConstantMean(batch_shape=torch.Size([num_quantiles]))
        covar = ScaleKernel(
            RBFKernel(ard_num_dims=D, batch_shape=torch.Size([num_quantiles])),
            batch_shape=torch.Size([num_quantiles]),
        )
        super().__init__(
            variational_strategy, mean, covar, [num_quantiles], [num_lower_quantiles]
        )


inducing_points = torch.linspace(0, 1, 10, device=device).reshape(-1, 1)
central_q_index = 2

likelihood = CenterGapQuantilesLikelihood(q, central_q_index).to(device)
model = QuantileGPModel(
    inducing_points,
    len(q),
    central_q_index,
).to(device)

from gpytorch.mlls import VariationalELBO

model.train()
likelihood.train()

optimizer = torch.optim.Adam(
    list(model.parameters()) + list(likelihood.parameters()),
    lr=0.001,
)
mll = VariationalELBO(likelihood, model, num_data=y.numel())

for _ in range(n_epochs):
    output = model(x)
    loss = -mll(output, y)
    loss.backward()
    optimizer.step()
    optimizer.zero_grad()

model.eval()
likelihood.eval()

with torch.no_grad():
    mean_q = model.mean_quantiles_mc(x_pred)
    lower_q, upper_q = model.quantile_quantiles_mc(
        x_pred, torch.tensor([0.025, 0.975], device=device)
    )

pred_mean_q = mean_q.detach().cpu()
pred_lower_q = lower_q.detach().cpu()
pred_upper_q = upper_q.detach().cpu()

colors = plt.cm.tab10.colors

plt.scatter(x.cpu(), y.cpu(), c="k", marker=".")

for i in range(len(q)):
    plt.plot(x_pred.cpu(), pred_mean_q[:, i].cpu(), color=colors[i])
    plt.fill_between(
        x_pred.cpu().squeeze(),
        pred_lower_q[:, i].cpu(),
        pred_upper_q[:, i].cpu(),
        color=colors[i],
        alpha=0.3,
    )
plt.show()

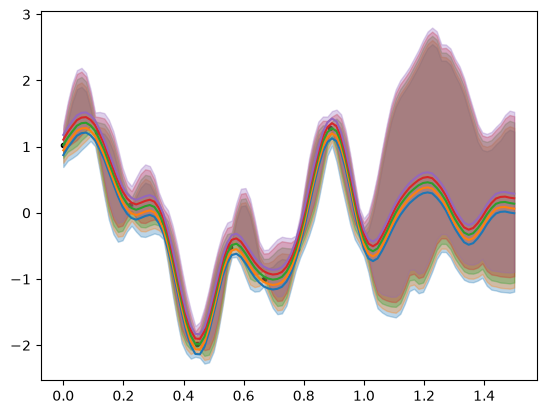

Model with prior

from gpytorch.means import ConstantMean
from gpytorch.kernels import ScaleKernel, RBFKernel
from gpytorch.priors import LogNormalPrior
from gpytorch.variational import (
    CholeskyVariationalDistribution,
    VariationalStrategy,
    IndependentMultitaskVariationalStrategy,
)
from gpytorch_qr.models import CenterGapQuantileGP
from gpytorch_qr.likelihoods import CenterGapQuantilesLikelihood


class QuantileGPModel(CenterGapQuantileGP):
    def __init__(
        self,
        inducing_points,
        num_quantiles,
        num_lower_quantiles,
    ):
        N, D = inducing_points.size()
        variational_distribution = CholeskyVariationalDistribution(
            N,
            batch_shape=torch.Size([num_quantiles]),
        )
        variational_strategy = IndependentMultitaskVariationalStrategy(
            VariationalStrategy(
                self,
                inducing_points,
                variational_distribution,
                learn_inducing_locations=True,
            ),
            num_tasks=num_quantiles,
        )

        mean = ConstantMean(batch_shape=torch.Size([num_quantiles]))
        covar = ScaleKernel(
            RBFKernel(
                ard_num_dims=D,
                batch_shape=torch.Size([num_quantiles]),
                lengthscale_prior=LogNormalPrior(0, 1),
            ),
            batch_shape=torch.Size([num_quantiles]),
        )

        super().__init__(
            variational_strategy, mean, covar, [num_quantiles], [num_lower_quantiles]
        )


inducing_points = torch.linspace(0, 1, 10, device=device).reshape(-1, 1)
central_q_index = 2

likelihood = CenterGapQuantilesLikelihood(
    q,
    central_q_index,
    noise_prior=LogNormalPrior(0, 1),
).to(device)
model = QuantileGPModel(
    inducing_points,
    len(q),
    central_q_index,
).to(device)

from gpytorch.mlls import VariationalELBO

model.train()
likelihood.train()

optimizer = torch.optim.Adam(
    list(model.parameters()) + list(likelihood.parameters()),
    lr=0.001,
)
mll = VariationalELBO(likelihood, model, num_data=y.numel())

for _ in range(n_epochs):
    output = model(x)
    loss = -mll(output, y)
    loss.backward()
    optimizer.step()
    optimizer.zero_grad()

model.eval()
likelihood.eval()

with torch.no_grad():
    mean_q = model.mean_quantiles_mc(x_pred)
    lower_q, upper_q = model.quantile_quantiles_mc(
        x_pred, torch.tensor([0.025, 0.975], device=device)
    )

pred_mean_q = mean_q.detach().cpu()
pred_lower_q = lower_q.detach().cpu()
pred_upper_q = upper_q.detach().cpu()

colors = plt.cm.tab10.colors

plt.scatter(x.cpu(), y.cpu(), c="k", marker=".")

for i in range(len(q)):
    plt.plot(x_pred.cpu(), pred_mean_q[:, i].cpu(), color=colors[i])
    plt.fill_between(
        x_pred.cpu().squeeze(),
        pred_lower_q[:, i].cpu(),
        pred_upper_q[:, i].cpu(),
        color=colors[i],
        alpha=0.3,
    )
plt.show()
