Cross validation

Model selection by 5-fold cross validation.

import os
import torch
import matplotlib.pyplot as plt

torch.manual_seed(42)
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")

n_epochs = int(os.getenv("GPYTORCHQR_N_EPOCHS", 5000))

Input data

def mean(x):
    # x: (N, 1)
    return torch.cos(x.squeeze(-1) * 2 * 3.14)


def std(x):
    # x: (N, 1)
    return x.squeeze(-1) + 0.1


x_range = torch.linspace(0, 1, 100, device=device).reshape(-1, 1)
x = x_range.repeat(2, 1)
y = mean(x) + torch.randn(len(x), device=device).mul(std(x))
q = torch.tensor([0.1, 0.5, 0.9], device=device)
standard_normal = torch.distributions.Normal(
    torch.zeros((), device=device), torch.ones((), device=device)
)
icdf = standard_normal.icdf(q)
true_quantiles = mean(x_range).unsqueeze(1) + std(x_range).unsqueeze(1) * icdf

x_pred = torch.linspace(0, 1.5, 100, device=device).reshape(-1, 1)

plt.scatter(x.cpu(), y.cpu(), c="k", marker=".")
plt.plot(x_range.cpu(), true_quantiles.cpu(), "--", c="gray")
plt.show()

from sklearn.model_selection import KFold

K = 5
kf = KFold(n_splits=K, shuffle=True, random_state=42)

x_train_list, y_train_list, x_test_list, y_test_list = [], [], [], []
for train_idx, test_idx in kf.split(x.cpu()):
    x_train_list.append(x[train_idx])
    y_train_list.append(y[train_idx])
    x_test_list.append(x[test_idx])
    y_test_list.append(y[test_idx])

x_train_cv = torch.stack(x_train_list).to(device)
y_train_cv = torch.stack(y_train_list).to(device)
x_test_cv = torch.stack(x_test_list).to(device)
y_test_cv = torch.stack(y_test_list).to(device)

Model

from gpytorch.means import ConstantMean
from gpytorch.kernels import ScaleKernel, RBFKernel
from gpytorch.variational import (
    CholeskyVariationalDistribution,
    VariationalStrategy,
    IndependentMultitaskVariationalStrategy,
)
from gpytorch_qr.models import CenterGapQuantileGP
from gpytorch_qr.likelihoods import CenterGapQuantilesLikelihood


class QuantileGPModel(CenterGapQuantileGP):
    def __init__(
        self,
        inducing_points,
        num_quantiles,
        num_lower_quantiles,
        num_folds,
    ):
        N, D = inducing_points.size()
        batch_shape = torch.Size([num_folds, num_quantiles])
        variational_distribution = CholeskyVariationalDistribution(
            N,
            batch_shape=batch_shape,
        )
        variational_strategy = IndependentMultitaskVariationalStrategy(
            VariationalStrategy(
                self,
                inducing_points,
                variational_distribution,
                learn_inducing_locations=True,
            ),
            num_tasks=num_quantiles,
        )

        mean = ConstantMean(batch_shape=batch_shape)
        covar = ScaleKernel(
            RBFKernel(ard_num_dims=D, batch_shape=batch_shape),
            batch_shape=batch_shape,
        )
        super().__init__(
            variational_strategy, mean, covar, [num_quantiles], [num_lower_quantiles]
        )


inducing_points = torch.linspace(0, 1, 10, device=device).reshape(-1, 1)
central_q_index = 1

likelihood = CenterGapQuantilesLikelihood(
    q,
    central_q_index,
    batch_shape=torch.Size([K]),
).to(device)
model = QuantileGPModel(
    inducing_points,
    len(q),
    central_q_index,
    num_folds=K,
).to(device)

from gpytorch.mlls import VariationalELBO

optimizer = torch.optim.Adam(
    list(model.parameters()) + list(likelihood.parameters()),
    lr=0.001,
)
mll = VariationalELBO(likelihood, model, num_data=y.numel())

train_losses, test_losses = [], []
for _ in range(n_epochs):
    model.train()
    likelihood.train()

    output = model(x_train_cv)
    train_loss = -mll(output, y_train_cv)
    train_loss.sum().backward()
    optimizer.step()
    optimizer.zero_grad()

    model.eval()
    likelihood.eval()

    with torch.no_grad():
        output = model(x_test_cv)
        test_loss = -mll(output, y_test_cv)

    train_losses.append(train_loss.mean().item() / len(q))
    test_losses.append(test_loss.mean().item() / len(q))

model.eval()
likelihood.eval()

with torch.no_grad():
    mean_q = model.mean_quantiles_mc(x_pred)
    lower_q, upper_q = model.quantile_quantiles_mc(
        x_pred, torch.tensor([0.025, 0.975], device=device)
    )

pred_mean_q = mean_q.detach().cpu()
pred_lower_q = lower_q.detach().cpu()
pred_upper_q = upper_q.detach().cpu()

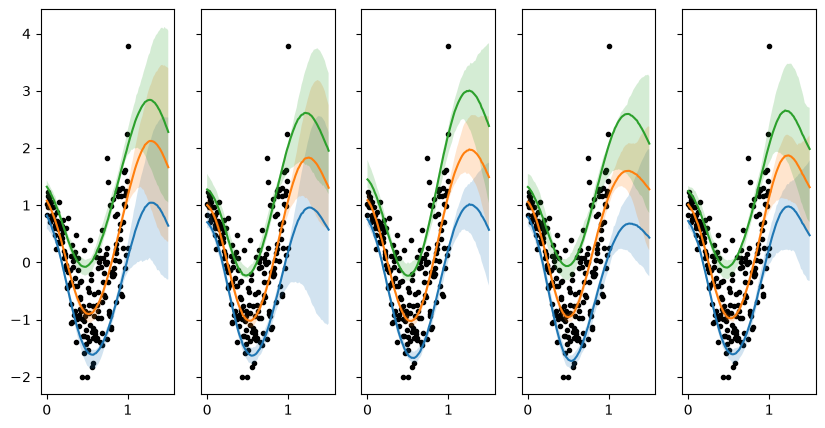

fig, axes = plt.subplots(1, K, figsize=(10, 5), sharex=True, sharey=True)

for i in range(K):
    axes[i].scatter(x.cpu(), y.cpu(), c="k", marker=".")
    for j in range(len(q)):
        axes[i].plot(
            x_pred.cpu(),
            pred_mean_q[i, :, j],
            label=f"q={q[j].item():.2f}",
        )
        axes[i].fill_between(
            x_pred.cpu().squeeze(-1),
            pred_lower_q[i, :, j],
            pred_upper_q[i, :, j],
            alpha=0.2,
        )
fig.show()

Plot loss by epoch

plt.plot(train_losses, label="Train Loss")
plt.plot(test_losses, label="Test Loss")
plt.legend()
plt.show()
